Heating, ventilation, and air conditioning (HVAC)

Protecting workers and shooters from lead and gaseous pollutants at indoor firing ranges is not a new concern. While many people may understand the dangers of potential lead poisoning at an indoor gun range, the ventilation technology available today is notable.

The primary source of lead at the range is bullets and their dust and fragments. In spite of alternatives, lead’s physical properties make it the preferred material used in ammunition. There are three areas of the range that present the greatest threat to lead exposure: First is the shooting station, where people fire guns. This is the site of the highest airborne concentration of lead. The second area is 15 feet downrange, where the EPA has found more than 90% of heavy lead dust settlement. Lastly, the target area contains the spent bullets and their fragments created upon impact with the trap. Before anyone walks downrange for any reason, it is recommended that one wear the appropriate OSHA regulated protective gear.

Acceptable Lead Levels

The idea of contracting lead poisoning by merely shooting a few rounds at a range might seem outlandish. However, it is not how often or how much one shoots; rather it is about the air quality of the range itself.

OSHA has established an action level (AL) and a permissible exposure level (PEL) for employees (29 CFR 1910.1025). The AL is 30 micrograms per cubic meter (µg/m3 ) of air as an eight hour time weighted average. When lead levels reach 30µg/m3 , actions must be taken to regularly monitor and further control the lead levels in the air to ensure compliance.

Recirculating the Air at an Indoor Firing Range

Filters can remove nearly all lead dust that passes through the HVAC system – depending on the type of filter, of course. Equally as important, however, is the ventilation system used at the range.

Some traditional ranges use the effective pass through or “once” through ventilation system – taking 100% of supply air from outside. As such, these systems require 100% of air to be heated or cooled to the desired temperature, drastically increasing the cost of energy for the range. While the pass through HVAC systems still need filters and maintenance, the dangers posed to employees and shooters are far less prominent than those of the diluted or recirculated ventilation systems.

Because recirculating ventilation systems for indoor firing ranges in most climates are significantly more energy efficient than alternatives, it is far cheaper to maintain and has become common practice. While proper ventilation and ventilation is imperative in all HVAC systems, the recirculating system in an indoor firing range poses particular challenges and risks and a greater threat to danger. Having the right filters in place can easily solve any issues before they become a problem.

First and foremost, the air must be blowing from behind the shooting stations. Recommended rates of airflow vary from 50 to 100 feet per minute (fpm), but authorities unanimously agree that the air flow should be visibly blowing all smoke and particles down range away from the shooters. In order to accomplish this effectively, the distribution of airflow must be equivalent across the entire line of shooters, with no obstructions in its path. This even distribution of air is known as laminar airflow, and it eliminates turbulent areas where particles and dust might drift back towards the shooters’ respiratory zone, otherwise called “backflow.”

In addition to the laminar airflow behind the shooting stations, negative air pressure down range helps move particles and lead dust away from the shooters. Air seeks a negative pressure release point, and by introducing newly supplied air as far up range as possible – behind the shooter – it effectively “pulls” the movement of air, and thus the particles, away from the shooter.

To help achieve this downrange negative pressure in a facility, an exhaust vent should be located approximately 15 feet downrange from the shooter. Not only does this exhaust some of the air supply, creating the negative pressure, but it extracts the largest lead particles because of its location as well. Because it does contain lead dust, all exhaust air must be filtered in accordance with the requirements of the United States Environmental Protection Agency.

Vents behind the target area will recirculate the nonexhausted air, combining it with supply air from outside. As a general rule, supply air should be 10% less than exhaust air to maintain the negative pressure in the range. Additionally, a supply air ratio of 30% is recommended to prevent buildup of toxic gases such as carbon monoxide.

The ventilation system is without question an important part of protecting employees and shooters. Equally important, however, are the series of filters used in the air handling unit (AHU).

The Importance of Ventilation

Despite bringing in supply air from outside, ventilation of both exhaust and recirculated air is absolutely imperative. The exhaust air, if not filtered properly, will release lead particles and toxins into the neighboring environment. The recirculated air needs to be filtered to both remove recirculating lead particles as well as prevent outside contaminants from supplied air from finding their way inside the HVAC system and range.

All exhaust and recirculated air must be filtered according to local, state, and federal law. Many states require 99.97% High Efficiency Particulate Air (HEPA) filters, but not all do. The Institute of Environmental Sciences and Technology (IEST) recommends HEPA for all points of removal (IEST RP-CC001)

High efficiency filters are expensive and not intended to handle large particles, which will damage the fragile media and render the filter useless in removing lead dust. Because of this, it is recommended to place upstream at least one pre-filter for exhaust air and a prefilter and secondary filter for recirculated air.

Secondary filters should be at least a MERV 14. While pre-filters and secondary filters will need more frequent change-outs, the cost savings by replacing them instead of the significantly more expensive high efficiency filters is sizable.

When to Change Filters

Changing filters when needed is every bit as important as having the right filters in place. If filters are saturated with dust and particles, they cease to adequately provide the function of maintaining clean air. Additionally, the increase in resistance will increase energy osts. Changing a filter when its initial pressure drop doubles. Measuring pressure drop can be done in different ways, the easiest being to install a differential pressure gauge with the HVAC system.

There is no standard amount of time to change out filters. While change-outs may become predictable based on time, this is not the recommended practice for a variety of reasons, including but not limited to filter damage, time of year, and how busy the range is. A differential pressure gauge is highly recommended for minimizing energy costs and maximizing safety. For OSHA-regulated practices when handling lead, refer to OSHA Standards found here:

http://www.osha.gov/SLTC/lead/index.html

While a range can effectively service itself, many choose to hire a full service indoor gun range maintenance company to both change filters and clean the facility.

Proper Disposal of Filters

Because HEPA filters from indoor firing ranges contain dangerous quantities of lead particles, they are considered hazardous waste and must be handled and stored in accordance with regulations in the Resource Conservation and Recovery Act (RCRA). For more information on proper disposal of the hazardous lead waste at a firing range, please contact the appropriate state agency found here:

http://www.epa.gov/osw/wyl/stateprograms.htm

HVAC Systems for Shooting Ranges (1)
HVAC Systems for Shooting Ranges (5)
HVAC Systems for Shooting Ranges (2)
HVAC,shooting range near me, shooting range nj, shooting range nyc, shooting range las vegas, shooting range san diego, shooting range miami, shooting range houston, shooting range austin, shooting range prices, shooting range orlando, shooting range, shooting range atlanta, shooting range anchorage, shooting range around me, shooting range ashland va, shooting range augusta ga, shooting range albuquerque, shooting range accessories, shooting range ann arbor, shooting range albany ny, a shooting range in new york, a shooting range in new jersey, a shooting range target, a shooting range in california, building a shooting range, open a shooting range, design a shooting range, building a shooting range indoor, to a shooting range tulsa, shooting a gun range, shooting range bay area, shooting range boston, shooting range bag, shooting range boise, shooting range backstop, shooting range burbank, shooting range bellevue, shooting range birmingham al, shooting range brooklyn, shooting range baton rouge, b&d shooting range, triple b shooting range, 3 b's shooting range, 3 b's shooting range honesdale pa, b tactical shooting range, b&r shooting range, b & r shooting range havelock nc, b&b shooting range, b t shooting range lorain oh, b&b shooting range puerto rico, shooting range chicago, shooting range columbus ohio, shooting range corona, shooting range charleston sc, shooting range ct, shooting range columbia mo, shooting range cincinnati, shooting range college station, shooting range cost, shooting range carts, tri c shooting range, c2 shooting range, c&w shooting range, triple c shooting range, c&c shooting range philadelphia, j-bar-c shooting range, t or c shooting range, c. f. phelps wma shooting range, david c. berti shooting range, ralph c. herrera shooting range, shooting range denver, shooting range delaware, shooting range dayton ohio, shooting range dc, shooting range daytona, shooting range doral, shooting range davie, shooting range deaths per year, shooting range design, shooting range distances, r&d shooting range, s d shooting range nicholasville ky, d&p shooting range, d & j shooting range st croix, triple d shooting range, b&d shooting range lorain, shooting range 3d, r and d shooting range ocala fl, bois d'arc shooting range, coeur d'alene shooting range, shooting range ear protection, shooting range equipment, shooting range ear muffs, shooting range easton pa, shooting range erie pa, shooting range everett, shooting range el paso, shooting range el cajon, shooting range evil within 2, shooting range ear plugs, e rodriguez shooting range, wayne e smith shooting range, james e moore shooting range, wayne e smith shooting range hours, wayne e smith shooting range address, shooting range fort worth, shooting range fresno, shooting range finder, shooting range fort collins, shooting range for kids, shooting range frederick md, shooting range fort lauderdale, shooting range fargo, shooting range for sale, shooting range fort myers, f class shooting ranges, f class long range shooting, john f lentz shooting range, chester f phelps shooting range, shooting range games, shooting range groupon, shooting range gear, shooting range glasses, shooting range grand rapids, shooting range gainesville fl, shooting range gun rental, shooting range greensboro nc, shooting range gta v, shooting range guns, tg&g shooting range, sp&g shooting range, adf&g shooting range, g creek shooting range, t&g shooting range, g&g shooting range, adf&g shooting range juneau, tg&g indoor shooting range, shooting range hours, shooting range headphones, shooting range huntington beach, shooting range hearing protection, shooting range hialeah, shooting range hudson nh, shooting range hickory nc, shooting range harrisonburg va, shooting range helena mt, h&h shooting range, 4-h shooting range fayetteville ga, h&h shooting range hours, 4-h shooting range dexter ky, h&p shooting range, wakefield 4-h shooting ranges, h and h shooting range prices, boswell porter 4-h shooting range, h&h gun range shooting death, callahan county 4 h shooting range, shooting range in las vegas, shooting range in spanish, shooting range in nj, shooting range indianapolis, shooting range in pa, shooting range in nyc, shooting range in san antonio, shooting range in los angeles, shooting range indoor, shooting range in corona, shooting i range, shooting range jacksonville, shooting range jacksonville nc, shooting range jobs, shooting range joplin mo, shooting range jackson tn, shooting range jackson mi, shooting range jersey city, shooting range jackson ms, shooting range johnston iowa, shooting range jacksonville ar, j henges shooting range, j&j shooting range, skip j shooting range, triple j shooting range, j r shooting range, j edward roush shooting range, j r outfitters shooting range, j edward roush shooting range hours, shooting range kansas city, shooting range knoxville, shooting range katy, shooting range killeen, shooting range kissimmee, shooting range kent, shooting range kalamazoo, shooting range kit, shooting range kent wa, shooting range kalispell mt, k hill shooting range, k&m shooting range, k m shooting range florida, k&m shooting range baker fl, circle k shooting range petaluma, k&m shooting range tennessee, p2k shooting range, lee kay shooting range, kim k shooting range, k&m precision shooting range, shooting range los angeles, shooting range louisville, shooting range lincoln ne, shooting range lexington ky, shooting range loveland, shooting range lancaster pa, shooting range la, shooting range lynchburg va, shooting range long beach, l&w shooting range, l&s shooting range, l s shooting range caldwell wv, l'acadie shooting range, l'epiphanie shooting range, l.a.x. shooting range, duane l corbin shooting range, shooting range l'assomption, shooting range maryland, shooting range madison wi, shooting range mobile al, shooting range modesto, shooting range meridian, shooting range manassas, shooting range meme, shooting range milwaukee, shooting range mn, blok m shooting range, m&m shooting range new jersey, 10m shooting range, 500m shooting range, 1000m shooting range, triple m shooting range, shooting range nashville, shooting range new orleans, shooting range nearby, shooting range near me prices, shooting range near, shooting range nh, shooting range near me now, shooting range northern va, n range shooting system, moore n shooting range, n. attleboro shooting range, triple n ranch shooting range, lock n load shooting range, brothers n arms shooting range, shooting range n. decatur las vegas, shooting range n ireland, shooting range orange county, shooting range oahu, shooting range omaha, shooting range okc, shooting range oceanside, shooting range olathe, shooting range open late, shooting range outfit, shooting range ohio, o'fallon shooting range, o'fallon mo shooting range, o fallon il shooting range, o'leary ave shooting range, land o lakes shooting range, tenoroc shooting range, james o thomason shooting range, o que é shooting range, shooting range pa, shooting range portland, shooting range pittsburgh, shooting range peoria il, shooting range philadelphia, shooting range poway, shooting range park, shooting range post falls, shooting range plano, pa shooting range, pa shooting range permit, pa shooting range rules, pa shooting range requirements, pa shooting ranges near nj, pa shooting range prices, pa shooting range gun rental, a&p shooting range virginia beach, s&p shooting range, shooting range quotes, shooting range queens, shooting range quad cities, shooting range queen creek, shooting range qualifications, shooting range quincy il, shooting range quakertown pa, shooting range quarryville pa, shooting range quitman ga, shooting range quintette road, flying q shooting range, shooting range reno, shooting range richmond va, shooting range rules, shooting range raleigh, shooting range ri, shooting range roanoke va, shooting range redding ca, shooting range rental, shooting range renton, shooting range richmond, r&r shooting range, double r shooting range, r&r shooting range jennings fl, mike r shooting range, r ranch shooting range, shooting range san jose, shooting range seattle, shooting range san francisco, shooting range spokane, shooting range salt lake city, shooting range salem oregon, shooting range sacramento, shooting range simi valley, shooting range slo, a&s shooting range, circle s shooting range, s&d shooting range, guthries shooting range, s&w shooting range, lazy s shooting range, cushman shooting range, shooting range targets, shooting range tucson, shooting range tulsa, shooting range tacoma, shooting range tyler tx, shooting range torrance, shooting range temecula, shooting range topeka ks, shooting range tempe, shooting range tuscaloosa, b&t shooting range, b t shooting range ohio, t rex shooting range, b&t shooting range lorain, p and t shooting range, shooting range t shirts, shooting range utah, shooting range upstate ny, shooting range utah county, shooting range upper marlboro md, shooting range urbana, shooting range unblocked, shooting range upland, shooting range union nj, shooting range uk, shooting range utica ny, long range shooting youtube, shooting range vegas, shooting range virginia beach, shooting range vacaville, shooting range ventura, shooting range vancouver wa, shooting range van nuys, shooting range valdosta ga, shooting range videos, shooting range vermont, shooting range ventura county, gta v shooting range, gta v shooting range tips, gta v shooting range 100 completion, gta v shooting range gold, gta v shooting range online, gta v shooting range challenges, gta v shooting range rewards, gta v shooting range glitch, mgsv shooting range, gta v shooting range multiplier, shooting range wichita ks, shooting range west palm beach, shooting range waco, shooting range wisconsin, shooting range winchester va, shooting range williamsburg va, shooting range wayne nj, shooting range waikiki, shooting range watsonville, shooting range washington dc, george w nourse shooting range, shooting range xenia ohio, shooting range ximending, shooting range near xenia ohio, shooting range ave x, shooting range near xenia, xtreme shooting range, xtreme shooting range winnipeg, xenia shooting range, x ring shooting range, xcom shooting range, avenue x shooting range, ave x shooting range address, x line shooting range, avenue x shooting range address, ave x shooting range nypd, gamo whisper x shooting range, avenue x brooklyn shooting range, 6.5 x 55 shooting range, shooting range yakima, shooting range york pa, shooting range yonkers, shooting range yuma, shooting range youngsville, shooting range yuba city, shooting range yelp, shooting range youngsville nc, shooting range youtube, shooting range yeadon pa, shooting range y, shooting range zion, shooting range zion il, shooting range zachary la, shooting range zimmerman mn, shooting range zanesville ohio, shooting range zephyrhills fl, shooting range zionsville indiana, shooting range zoning laws, shooting range zelienople, shooting range zion illinois, last empire war z shooting range, shooting range 08075, shooting range 08822, shooting range 07747, shooting range 08520, shooting range 08701, shooting range 08053, shooting range 08807, shooting range 08012, shooting range 08816, shooting range 08052, shooting range 1604, shooting range 18+, shooting range 100 yards, shooting range 1488, shooting range 1960, shooting range 101, shooting range 1314, shooting range 1431, shooting range 1979, shooting range 192, eagle 1 shooting range, 1 mile shooting range, article 1 shooting range, highway 1 shooting range, 1 mile shooting range ohio, eagle 1 shooting range raleigh, a 1 shooting range, 1 mile shooting range texas, area 1 shooting range woodfin nc, eagle 1 shooting range raleigh nc, shooting range 290, shooting range 200 yards near me, shooting range 23 and hayes, shooting range 28 mile and gratiot, shooting range 29 palms, shooting range 24 hours, shooting range 2854, shooting range 20878, shooting range 22192, shooting range 200 yards, fable 2 shooting range, article 2 shooting range, arma 2 shooting range, fable 2 shooting range cheat, borderlands 2 shooting range glitch, 2a shooting range, planetside 2 shooting range, fable 2 shooting range glitch, 2 rock shooting range, borderlands 2 shooting range, shooting range 355, shooting range 32828, shooting range 33186, shooting range 30269, shooting range 33647, shooting range 3d model, shooting range 300 yards, shooting range 3 points, shooting range 33rd orlando, shooting range 3d model free, arma 3 shooting range, fable 3 shooting range, 3 sights shooting range, 3 points shooting range, caliber 3 shooting range israel, arma 3 shooting range mission, 3 brothers shooting range, fable 3 shooting range 550, shooting range 44720, shooting range 441, shooting range 48044, shooting range 45069, shooting range 46227, shooting range 44512, shooting range 44060, shooting range 404, shooting range 44221, shooting range 41042, 4 guns shooting range randburg, battlefield 4 shooting range, fallout 4 shooting range, 4 square shooting range, gta 4 shooting range, fallout 4 shooting range diner, resi 4 shooting range, re4 shooting range, 4 corners shooting range, shooting range 500 yards, shooting range 50 cal, shooting range 59 north, shooting range 50 cal las vegas, shooting range 53147, shooting range 55th and keystone, shooting range 54, shooting range 55378, shooting range 57, shooting range 595, 5 shooting range rules, gta 5 shooting range, 5 dogs shooting range, gta 5 shooting range tips, gta 5 shooting range gold, gta 5 shooting range online, gta 5 shooting range light machine guns, gta 5 shooting range rewards, 5 stand shooting range, 5 star shooting range, shooting range 63366, shooting range 62269, shooting range 63123, shooting range 61st and garnett, shooting range 6th street los angeles, shooting range 63376, shooting range 63011, shooting range 60056, shooting range 611, shooting range 60089, 6 star shooting range, hwy 6 shooting range, route 6 shooting range, seal team 6 shooting range, 6 weeks pregnant shooting range, 6 5x55 long range shooting, 6 br long range shooting, nerf recon cs-6 shooting range, shooting range 77070, shooting range 76180, shooting range 76137, shooting range 747, shooting range 77055, shooting range 77082, shooting range 78254, shooting range 78249, shooting range 77077, shooting range 78258, 7 mile shooting range kingman az, 24/7 shooting range, 7 springs shooting range, 7 mile shooting range, scorpion-7's shooting range, route 7 shooting range, 7 mag long range shooting, 7-08 long range shooting, 7 wsm long range shooting, 7mm long range shooting, shooting range 8 mile and gratiot, shooting range 8 mile, shooting range 85044, shooting range 820, shooting range 8th street, shooting range 85027, shooting range 80021, shooting range 89149, shooting range 80233, shooting range 80013, 8 st shooting range, 8 mile shooting range, 8 year old shooting range, 8 weeks pregnant shooting range, 10-8 outfitters shooting range, shooting range 8 months pregnant, shooting range 92127, shooting range 9mm ammo, shooting range 92503, shooting range 91367, shooting range 94513, shooting range 90706, shooting range 92880, shooting range 90024, shooting range 9mm, shooting range 92507, 9 mile shooting range, highway 9 shooting range, 9mm shooting range, 9 mile shooting range texas, 9 year old shooting range, 9 year old shooting range video, dead space chapter 9 shooting range, shooting range 9gag,target retrieval system, target retrieval solution, target retrieval system for sale, target retrieval solution ph 9, target retrieval system homemade, target retrieval system price, target retrieval system uk, target retrieval solution citrate ph 6, target retrieval solution ph 6, target retrieval solution s1700, automatic target retrieval system, airgun target retrieval system, action target retrieval system, archery target retrieval system, how to make a target retrieval system, how to build a target retrieval system, target retrieval buffer, dako target retrieval buffer, build target retrieval system, retrieve target coupons, target retrieve dynamic crm 2011, target shopping cart retrieval, target gift card retrieval, dako target retrieval solution code s1700, dako target retrieval solution code no. s1700, dako target retrieval solution citrate, retrieval cue target, target retrieval dako, target retrieval system diy, target retrieval solution dako s2367, exacttarget retrieve data extension object, exacttarget retrieve data, dako target retrieval solution 10x, deadeye target retrieval system, deadeye target retrieval, dako target retrieval solution ph6, electric target retrieval system, electric target retrieval system uk, target for retrieval, retrieve target folder path from user, target retrieval system for sale uk, retrieve target gift card, gopher target retrieval system, gun target retrieval system, dako target retrieval solution high ph, target retrieval solution high ph, indoor target retrieval systems, cable system target retrieval kit, target retrieval solution low ph, target retrieval solution low ph dako, exact target retrieve list, lynx target retrieval system, retrieve target mobile coupons, target retrieval solution msds, mancom target retrieval system, manual target retrieval system, motorized target retrieval systems, outdoor target retrieval system, overhead target retrieval system, target retrieval pulley system, deadeye target retrieval system price, dako target retrieval solution price, target retrieve receipt, range target retrieval system, retrieve target text coupons, target retrieval solution 10x, dako target retrieval solution 10x concentrate,
HVAC Systems for Shooting Ranges (4)
HVAC Systems for Shooting Ranges (2)
sts112720179
sts1127201710
sts112720178

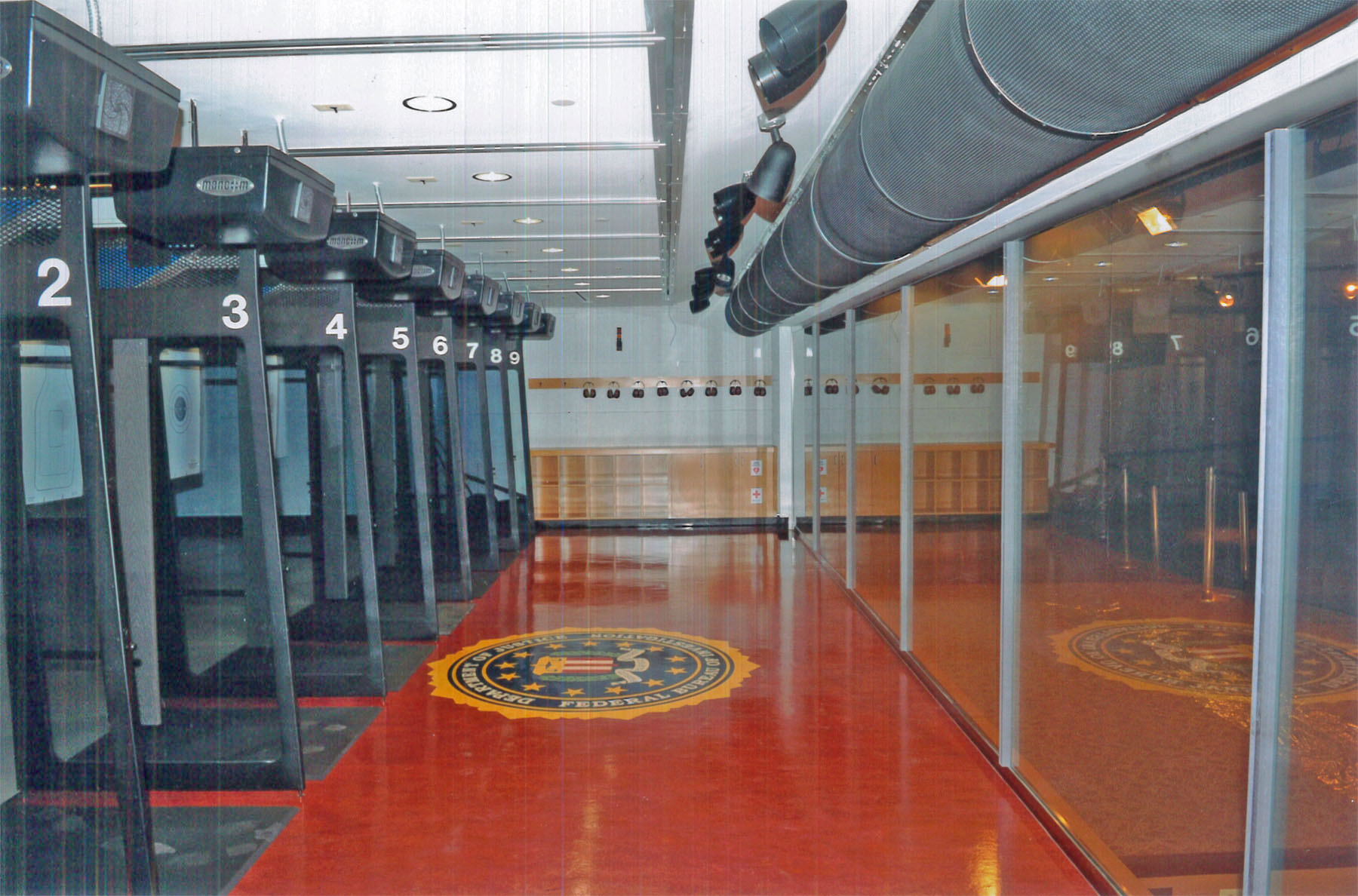

HVAC Systems for Shooting Ranges (6)
